Chain Drive Ceiling Roll Froming Machine With Punching / Track Cutting System

Name: Chain Drive Ceiling Roll Froming Machine With Punching Track Cutting System
Brand: Saibo
Price: 1 USD

Brand Name : Saibo

Model Number : Double Row

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Montantes Double Row Roll Forming Machine

Power : 11KW+7.5w with fan system+2.9kw servo power

Size Of purlin : Double Row

Steel thickness : 0.3-0.6mm

Decoiler : Manual or Hydraulic

Station : 13 stations + one station for rectify

Roller material : 45# forge steel, surface with chrome

Drive : By chain

Contact Now

1. Components of machine:

1	Decoiler	1set
2	Flatten device	1set
3	Servo feeding and punching system	1set
4	Main roll forming machine	1set
5	Hydraulic cutting system	1set
6	Controlling system	1set
7	Run out table	1set

2. Specification of the material

1	Suitable Material	GI, 300Mpa
2	Width of the raw material	According to the final profile
3	Thickness	0.3-0.6mm

3. Machine Detailed Parameters

1	Roll Forming	Montantes Double Row Roll Forming Machine
2	Machine structure	Wire-electrode cutting structure
3	Total power	Motor power-11kw Hydraulic power-7.5kw with storage tank Servo power-2.9kw
4	Roller stations	About 13 stations + one station for rectify
5	Productivity	About 25m/min for forming Include punching and cutting, about 12m/min
6	Drive system	By chain
7	Diameter of shaft	￠56mm solid shaft
8	Servo motor	3kw
9	Voltage	380V 50Hz 3phases (Customized)
10	Color Of The Machine	Yellow and blue
11	Deliver Time	70 days
12	Terms Of Payment	30%T/T 70% pay before shipment

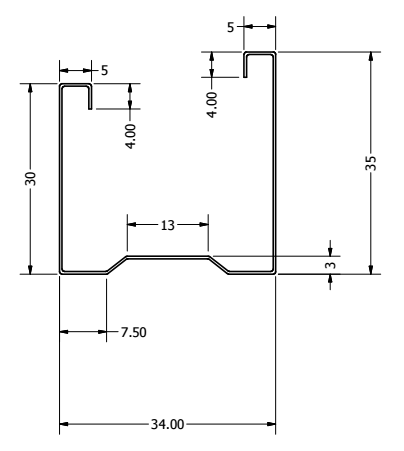

4. Profile drawing
Profile 1:
Chain Drive Ceiling Roll Froming Machine With Punching / Track Cutting System
Profile 2:

Joint

Punching for 69mm profile only

5. The Chart of Process Flow

6. Specification of Components

(1) 3T Manual Un-coiler

Adopt automatic hydraulic system for expand
Width of feeding: 350mm
Capability: 3 Ton
Bound of expand &fight: 380mm—520mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

(2) Flatten

Flattener roller: upper is 2 rollers, down is 3 stations(total is 5 rollers)
Diameter of flattener shaft:￠65mm, material is 45#
Power: 3KW

(3) Servo feeding& punching system

Servo feeding system
This system adopt servo feeding to make high speed and precision
Servo power: 1.9KW
Punching system
Base on customer provide punching drawing, this machine need adopt one unit hydraulic punching system
The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating.
The whole punching operation should be automated and controlled by a program installed in the PLC which is located in the operator's console.
Hydraulic power: 5.5kw

(4) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering
Main frame by 350H beam welding
Machine structure: Wire-electrode cutting

(5) Rectify device

One station after roll forming,
Function: for revise the end product up and down/ left and right to straightness
Roller material:GCR15 quenched 58°-62°finishing turning, CNC

(6) Track cutting system

Machine adopt track cutting system, Non-stop
Cutting power by hydraulic, 7.5KW
Track cutting by servo motor, power in 3.0KW
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine is NON-stop when cutting
Material of blade:Cr12 with heat treatment 58-60°

(7) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
PLC: Panasonic or customerization

Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate
.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

After Service

a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
