Hydraulic Wall / Roof Panel Roll Forming Machine 0.3-0.8mm Thickness 15 Stations

Name: Hydraulic Wall Roof Panel Roll Forming Machine 0308mm Thickness 15 Stations
Brand: Saibo
Price: 1 USD

Wholesale Hydraulic Wall / Roof Panel Roll Forming Machine 0.3-0.8mm Thickness 15 Stations from china suppliers

Brand Name : Saibo

Model Number : YX12.5-82-748

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Wall Panel Roll Forming Machine

Power : 5.5KW+4kw

Steel thickness : 0.3-0.8mm

Size Of purlin : YX12.5-82-748

Decoiler : 45# forge steel, surface with chrome

station : About 15 stations

Productivity : 0-15m/min

Color : Bule and yellow

Contact Now

Hydraulic Decoiler Wall Panel Roll Forming Machine YX12.5-82-748 By Chain

YX12.5-82-748 Wall Panel Roll Forming Machine

1. Specification of the material

1	Suitable Material	Colored Steel plate, Galvanized steel
2	Width of the raw material	914mm
3	Thickness	0.3-0.8mm

2. Machine Detailed Parameters

1	Roll Forming Machine	YX12.5-82-748
2	Machine structure	Wall board structure
3	Total power	Motor power-5.5kw Hydraulic power-4kw
4	Roller stations	About 15 stations
5	Productivity	12-15m/min
6	Drive system	By chain,1.0 inch
7	Diameter of shaft	￠70mm solid shaft
8	Voltage	380V 50Hz 3phases (Customized)
9	Color Of The Machine	Bule and yellow
10	Deliver time	70 days
11	Terms Of Payment	30%T/T 70% pay before shipment

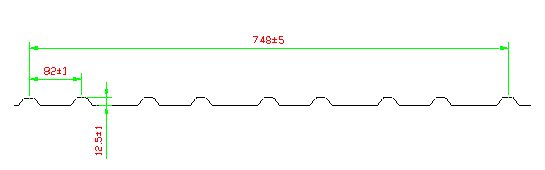

3. Profile drawing

Hydraulic Wall / Roof Panel Roll Forming Machine 0.3-0.8mm Thickness 15 Stations

4. The Chart of Process Flow

Hydraulic Uncoiler—Roll Forming—Cutting—Out table

Hydraulic Wall / Roof Panel Roll Forming Machine 0.3-0.8mm Thickness 15 Stations

5. Specification of Components

(1) 5T Hydraulic Un-coiler

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 470-520mm
Maximal out diameter: 1500mm
Working speed: 0--20m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw

(2) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
Main frame by 350H beam welding
Machine structure: wall board

(3) Hydraulic cutting system

Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

PLC: Panasonic or customerization
