2-4mm thickness CZ Purlin Roll Forming Machine gear box driving strong structure

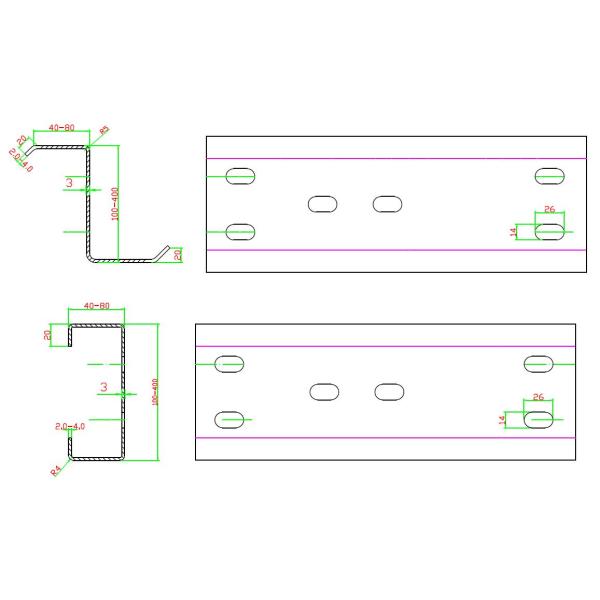

main speficication:
- Steel thickness (t): 2.0 mm to 4,0 mm;
- Profile height (h): 100 mm to 400 mm;
- Flange width (b): 40 mm to 80 mm;
- Flange height (c): 12 mm to 20 mm;
2. The Chart of Process Flow
hydraulic decoiler---leveling---punching---roll forming---cutting---auto stacker
Specification
| No | | Technical Specification & Remark |
| 1 | hydraulic decoiler | - Steel coil width: 550 mm;
- Internal diameter of coil: adjustable from 470 mm to 520 mm
- Maximum coil weight: 5 ton
- Main motor power: 5.5KW
- Hydraulic power: 4kw
|
| 2 | Leveling part | - Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
- Flattener roller material: #45 forge steel thermal treatment hardness 48-52 HRC.
- Flattener roller: #45 forge steel , hardening and tempering
|
| 3 | Punching system | - 2 sets of punching system
- Hydraulic power: 7.5kw
|
| 4 | Main Roll Forming Machine |
| 6 | cutting system | - hydraulic post cutting after roll forming
- one set of cutting blade can make all the sizes by adjustment
- Hydraulic power: 7.5kw
|
| 7 | Hydraulic System | - Hydraulic power: 7.5kw
- Working pressure: 20Mpa adjustable
- Solenoid valve: 3 groups
- Hydraulic oil: 46# hydraulic oil
|
| 8 | Computer Control panel | - Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- Length inaccuracy can be amended easily.
- PLC brand: Panasonic
- Touch screen: MCGS
- Encoder: Omron
|
| 8 | auto stacker | - Length: 6 meters
- Quantity: 1 unit
|
4. Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
