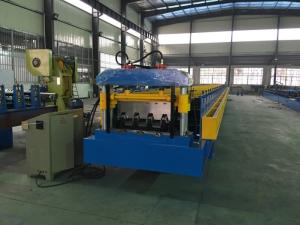

Double Line Sheet Metal Roll Forming Machines , Floor Deck Metal Stud Roll Forming Machine

Brand Name : Saibo

Model Number : YX114-200-601

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Floor Deck Roll Forming Machine

Power : 15KW x2+7.5kw

Size Of purlin : YX114-200-601

Steel thickness : 0.5-1.5mm

Decoiler : Manual or hydraulic

Station : About 40 stations

Roller material : ASTM1045 chrome plated surface with hardness, CNC

Drive : By chain, double line

Contact Now

Metal deck roll forming machine

The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave, Dingbo Technology is always your best choice of metal deck roll forming machine.

Saibo make different profiles according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.

1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1250mm
3 Thickness 0.5mm-1.5mm

2. Machine Detailed Parameters

1

Roll Forming Machine YX114-200-601

2

Machine structure Wall board structure

3

Total power

Motor power-15kw x2

Hydraulic power-7.5kw

4

Roller stations About 40 stations

5

Productivity

0-15m/min

6

Drive system By chain, double line

7

Diameter of shaft ¢85mm solid shaft

8

Voltage 380V 50Hz 3phases (Customized)

9

Color Of The Machine Yellow and blue

10

Container need 40HQ container

11

Deliver Time 70 days

12

Terms Of Payment 30%T/T 70% pay before shipment

3. Profile drawing

Double Line Sheet Metal Roll Forming Machines , Floor Deck Metal Stud Roll Forming Machine

4. The Chart of Process Flow

Double Line Sheet Metal Roll Forming Machines , Floor Deck Metal Stud Roll Forming Machine

5. Specification of Components

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

(2) Main Roll Forming Machine

  • Roller material: ASTM1045 chrome plated surface with hardness, CNC
  • Shaft diameter: ¢85mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board

(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

Double Line Sheet Metal Roll Forming Machines , Floor Deck Metal Stud Roll Forming Machine

Double Line Sheet Metal Roll Forming Machines , Floor Deck Metal Stud Roll Forming Machine

Double Line Sheet Metal Roll Forming Machines , Floor Deck Metal Stud Roll Forming Machine
